FY-QC Cost Effective 2 axis Ultrasonic Wind Sensor

FOB Reference Price:Get Latest Price
US $1,358-1,688 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
100 Set/Sets per Month
Port:
shenzhen
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shaanxi, China (Mainland)
Brand Name:
YM
Model Number:
FY-QC
Usage:
weather monitoring
Theory:
Ultrasonic Sensor
Output:
digital and analog output option
Principle:
Ultrasonic technology
housing:
corrision-resistant polymer
heating:
available
outputs:
4-20mA,0-20mA,RS422,RS485 options
operating temperature:
-40 to +60 degree C
Packaging & Delivery
Packaging Details
padded carton
Delivery Time
Shipped in 10 days after payment

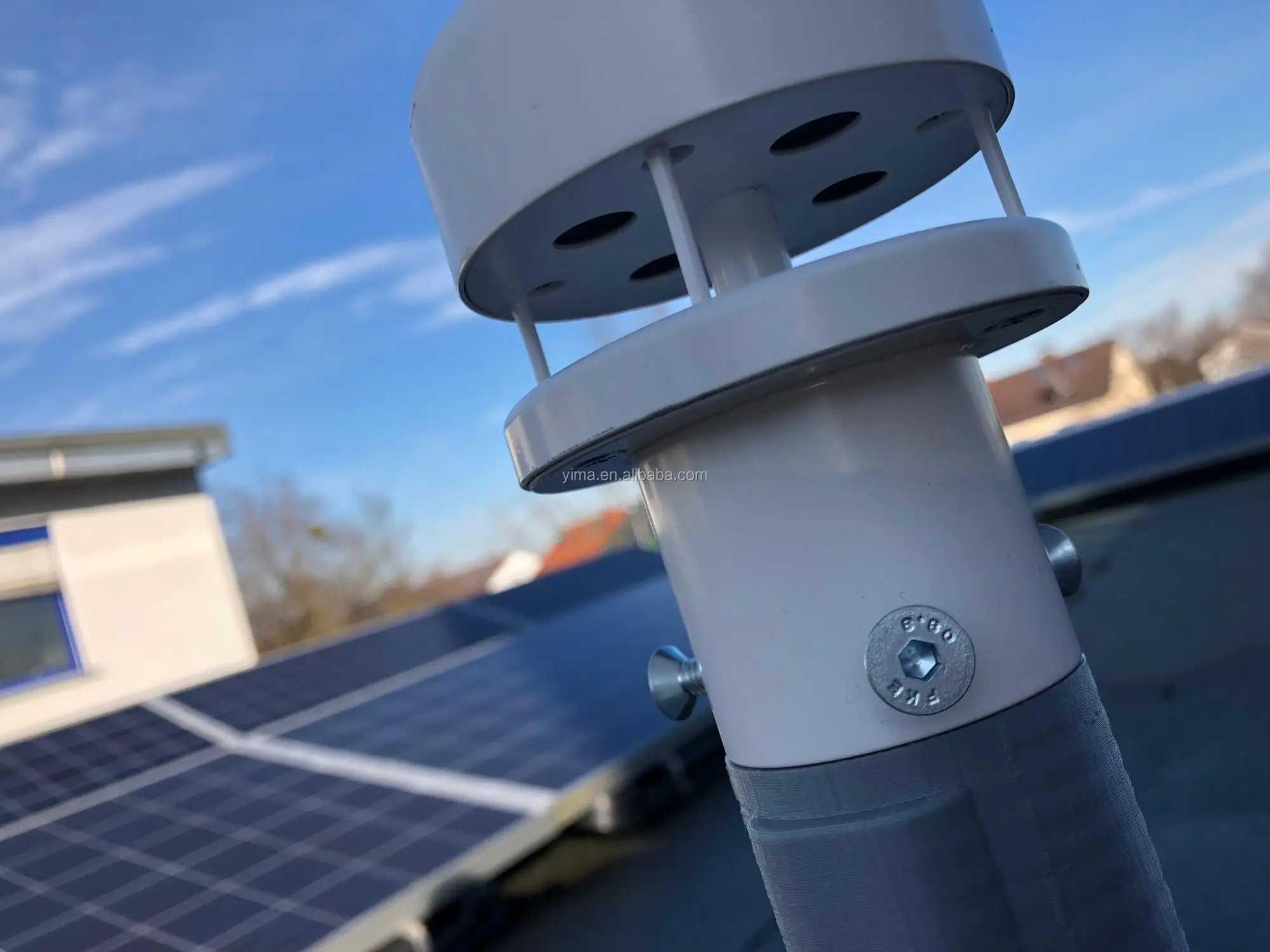

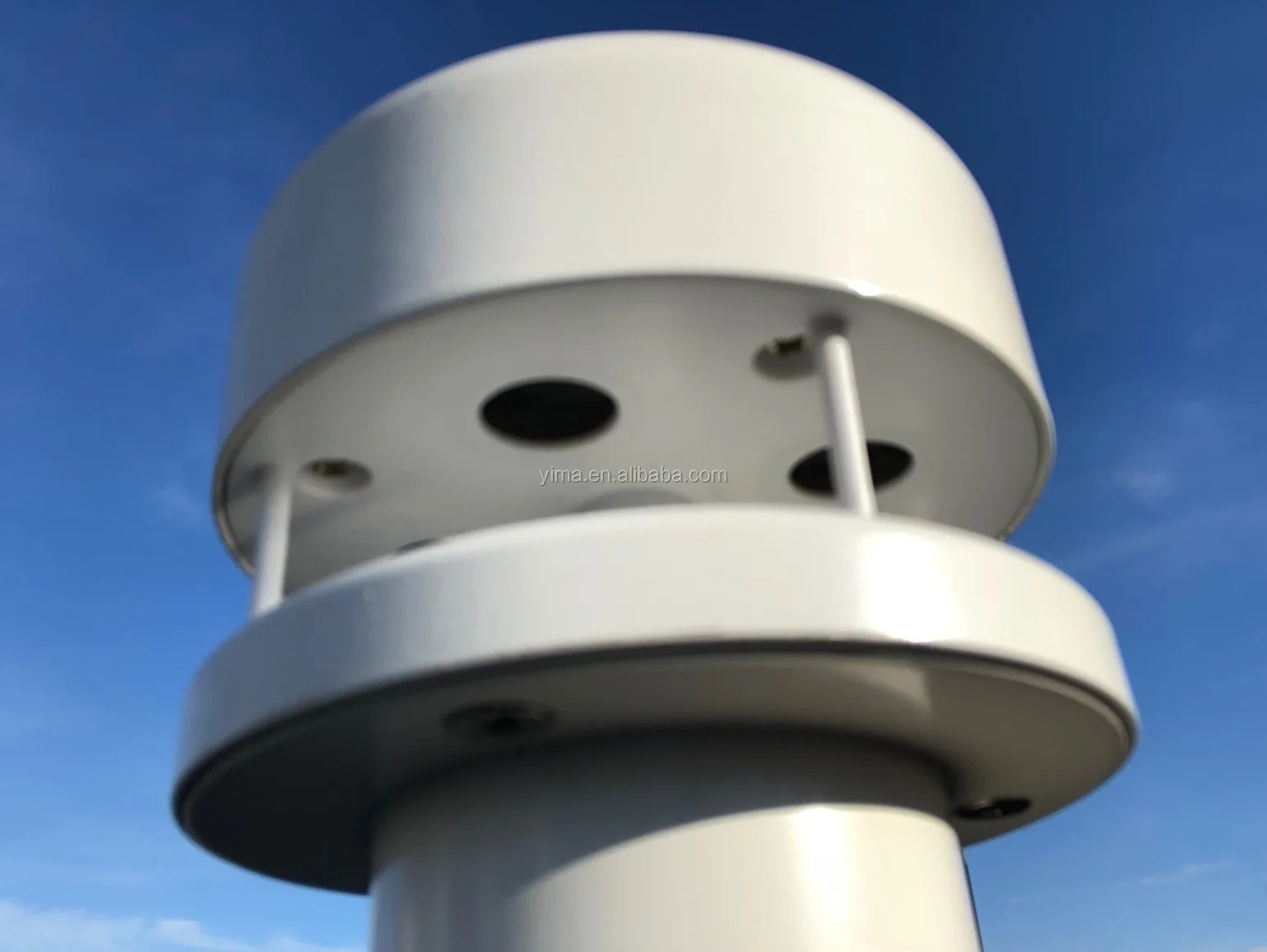

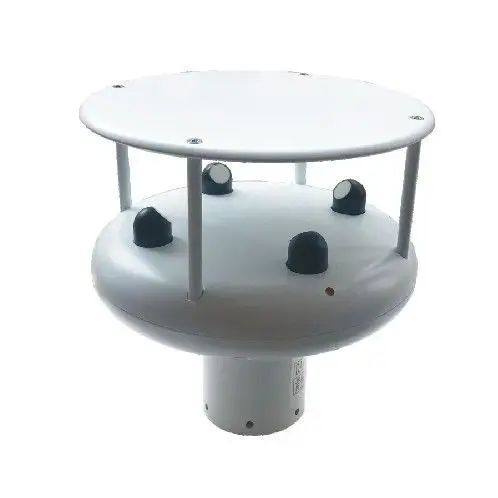

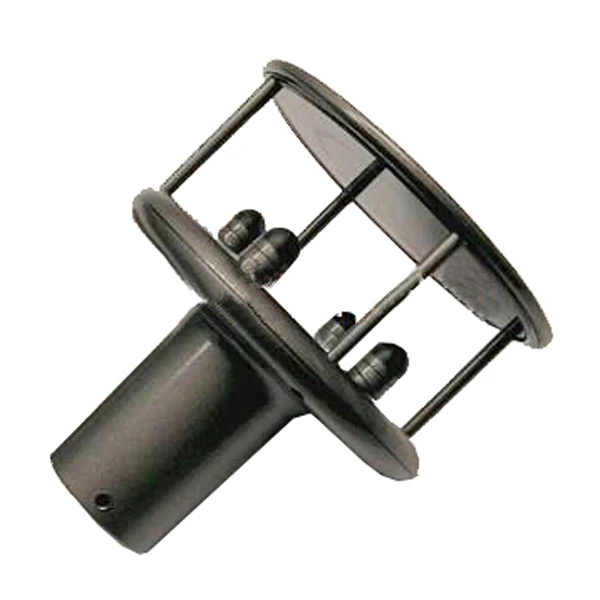

 FY-QC is a robust, low cost ultrasonic wind sensor with no moving parts.

Features
This 2-axis ultrasonic wind sensor offers maintenance-free wind speed and direction monitoring for true ‘fit and forget’ wind sensing.

 It is a genuine low cost alternative to conventional cup and vane or propeller wind sensors, with all of the advantages of solid-state ultrasonic technology.

With no moving parts to jam, break or wear out, this ultrasonic wind sensor is ideal for use in harsh weather

conditions.
It is a 2axis ultrasonic wind sensor, providing wind speed and direction data via one serial or two analogue

outputs.

 To confirm correct operation, wind sensor outputs are transmitted together with an instrumentation status

code.

It has been designed as a lightweight and robust ultrasonic wind sensor, with a corrosion free polymer construction.

 With a true solidstate construction, it can be operated in harsh environmental conditions without fear of

damage often associated with fragile cup or propeller wind sensors.

It is suitable for a wide range of wind monitoring applications, particularly suited to marine & offshore (ships, data buoys) and land based installations.

With a corrosion free exterior and no moving parts, this ultrasonic wind sensor eliminates the need for expensive on-site maintenance,

particularly in remote locations where access is difficult.

Technical parameters

1.Low-cost 2-axis ultrasonic wind sensor with heating

2.Solid-state technology - no moving parts

3.0-60m/s wind speed

4.0-360º wind direction

5.Corrosion-free polymer exterior

6.Optional RS422, RS485 and analogue Outputs

Technical parameters

(1) The wind speed

Measure range: 0-60(m/s)

Accuracy: <=10m/s :±0.1m/s ,>10m/s

Resolution ratio: 0.1m/s

(2) Wind  direction

Measure range : 0-360° ((no dead band)

Accuracy : ±1°

Resolution : 1°

(3) Output s: 4-20mA/0-20mA/RS485/RS422  (optional)

Ultrasonic Output Rate:1-10Hz

Operating Temperature -40ºC to +60ºC

Moisture Protection IP65
