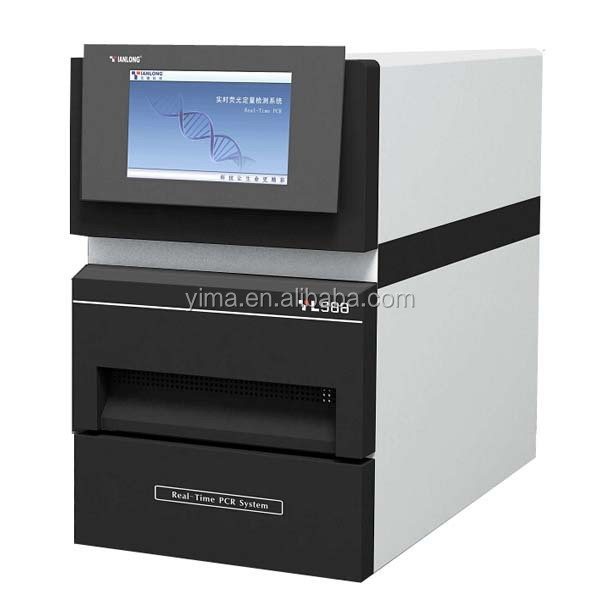

TL988-4 four-channel real-time fluorescent quantitative PCR instrument

FOB Reference Price:Get Latest Price
$19,000.00 - $21,500.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Quick Details
Genes & Life Science Equipments
Brand Name:
Model Number:
Place of Origin:
Shaanxi, China (Mainland)
Instrument classification:
Class II
power supply:
220V 50HZ
Product name:
real-time fluorescent quantitative PCR instrument
English and Chinese
8.4'(800*600) color TFT touch LCD
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
Padded Carton
Lead Time :
Shipped in 10 days after payment

TL988-4 four-channel real-time fluorescent quantitative PCR instrument


 1. The standard 96 hole design Sample size of 96, to adapt to the standard 0.2 ml without skirt hem 96 - well plates, eight straight tube (optical flat cover)

 2. The innovation of high precision temperature control technology Adopt the new type of heat pipe technology, to realize the accurate temperature control, ensure the precision of temperature control and uniformity, achieve the optimization of PCR

 3. High sensitivity optical design patent technology PCR special highlight LED, and maintenance-free automatic optical calibration techniques; High precision, fast optical scanning test

 4. More powerful, high accuracy, sensitivity and repeatability High sensitivity four color detection, SNP analysis, genotyping, relative quantitative, gene expression, and other functions;

 For high resolution melting analysis (HRM);

Constant temperature, constant pressure heat cover design, effectively prevent evaporation reagent

 5. More humanized design Instrument built-in 7 inches full color touch screen, can independence from the computer, use more simple;

 Push-pull type, electric lift platform deck, use more convenient;

 Hidden constant temperature constant pressure heat cover, use more secure;

 Block temperature automatically when pulling down to room temperature, prevent burns;

 Convenient user use, independent of the user program management;

 Through U disk import, export experimental configuration and data, more convenient;

 Unique universal report design allows the user to custom report style, more in line with the personalized needs of scientific research and industry users

 6. The network design

 Through a standard Ethernet and computer connection, a single computer can connect more than one instrument at the same time, realize the centralized control

 7. The internationalization design

 Many languages dynamically switching, the computer software is optional Windows, Linux, and other operating system version

 Technical parameters

Specimen carrier

0.1 ml without skirt hem 96 - well plates, 8 header, (optical flat cover)

Number of specimens

Number 96 specimens, including detection control


Channel 1:FAM, SYBR Green I;

Channel 2:HEX, VIC, TET,JOE;

Channel 3:ROX,TEXAS RED;

Channel:CY5, such as fluorescent dyes, reagent opening

Reaction volume


Temperature control system

Semiconductor refrigeration technology

Optical system

Highlight maintenance free LED light source



System interface

Network interface, through the U disk copy of the experimental configuration and data


7 inch color touch screen, can be run independently from the computer

Host operating system




Product weight


Use environment

temperature 5 ~ 40 ℃, relative humidity 80% or less

power supply

AC220 × (1±10%)V, 50 × (1±2%)HZ

Power consumption
